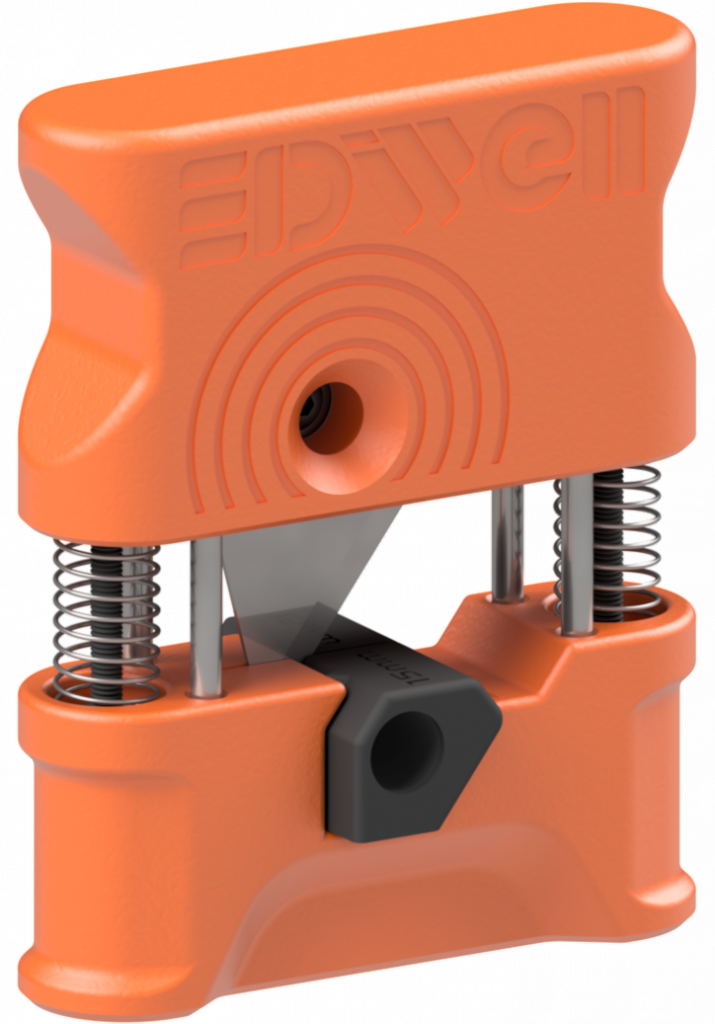

Handheld Guillotine V2.0
PTFE tube cutter V2.0, designed for printing with a 0.25 mm nozzle.
Go to files |  |
About this project
A PTFE tube cutter, version 2.0. The attachments include an STL parts archive, a 3D viewer and the cutter manual.
Please note: this model was designed to be printed with a 0.25 mm nozzle.
Additional components to purchase
| Component | Quantity |
|---|---|
| Pin, D3 × 50 mm | 4 |
| Pin, D2 × 30 mm | 1 |
| M3 brass heat-set insert (D4.6 × L5.7) | 3 |
| M4 brass heat-set insert (D5.5 × L10) | 1 |
| Hex socket screw M3 × 8 mm | 1 |
| Hex socket screw M3 × 40 mm | 2 |
| Hex socket screw M4 × 50 mm | 1 |
| Compression spring, OD10 × L25 × WD0.7 | 2 |
| Trapezoidal blade, 19 mm × 61 mm × 0.6 mm | 1 |
License & attribution
© 2024, the 3Diwell team. This model is licensed under Creative Commons Attribution–NonCommercial 4.0 International (CC BY-NC 4.0).
A note from the 3Diwell team
We would appreciate it if you could take a moment to rate our projects. If you enjoyed them, it means we are more than just people with a printer — we are making things that actually work.
A five-star rating inspires us to explore new ideas and achieve more. And a review saves our team from melancholy after reprinting the same part for the 37th time.
With thanks and a calibrated extruder,
Your 3Diwell team, still believing in the power of reviews…
Rate our projects and leave a review
Support our projects
To support this project, visit its original project page (Russian).
Files
3D STL Parts v2.zip25.0 MB3d viewer.html149.1 MBCutter_Manual.pdf4.6 MBPlease check the project license and requirements before using these files.
Original project page RU ↗
